The Icicle Atlas Run 120207
an iconic icicle

The Icicle Atlas
Run 120207


The image at the left shows a typical view of the icicle made in this run.

  • Conditions

    Run date: 2012-02-07
    Wall temperature: -12.28 C
    Air temperature: -9.80 C
    Water flow rate: 1.9602 g/min
    Water type: Canadian Springs (TM) distilled water
    Salt concentration: 8.00e-03 wt %
    Surfactant concentration: no added surfactant
    Input nozzle temperature: 5.01 C
    Fan flux: 0.82 m^3/min per fan
    Support rotation: Rotating support
    Support rotation rate: 4.07 min/rot
    Relative humidity: 80.6 %
    Scale of raw images: 54.672 pixel/cm

  • Movies
           Playing movies in your browser may require a plugin. Movies can be downloaded.

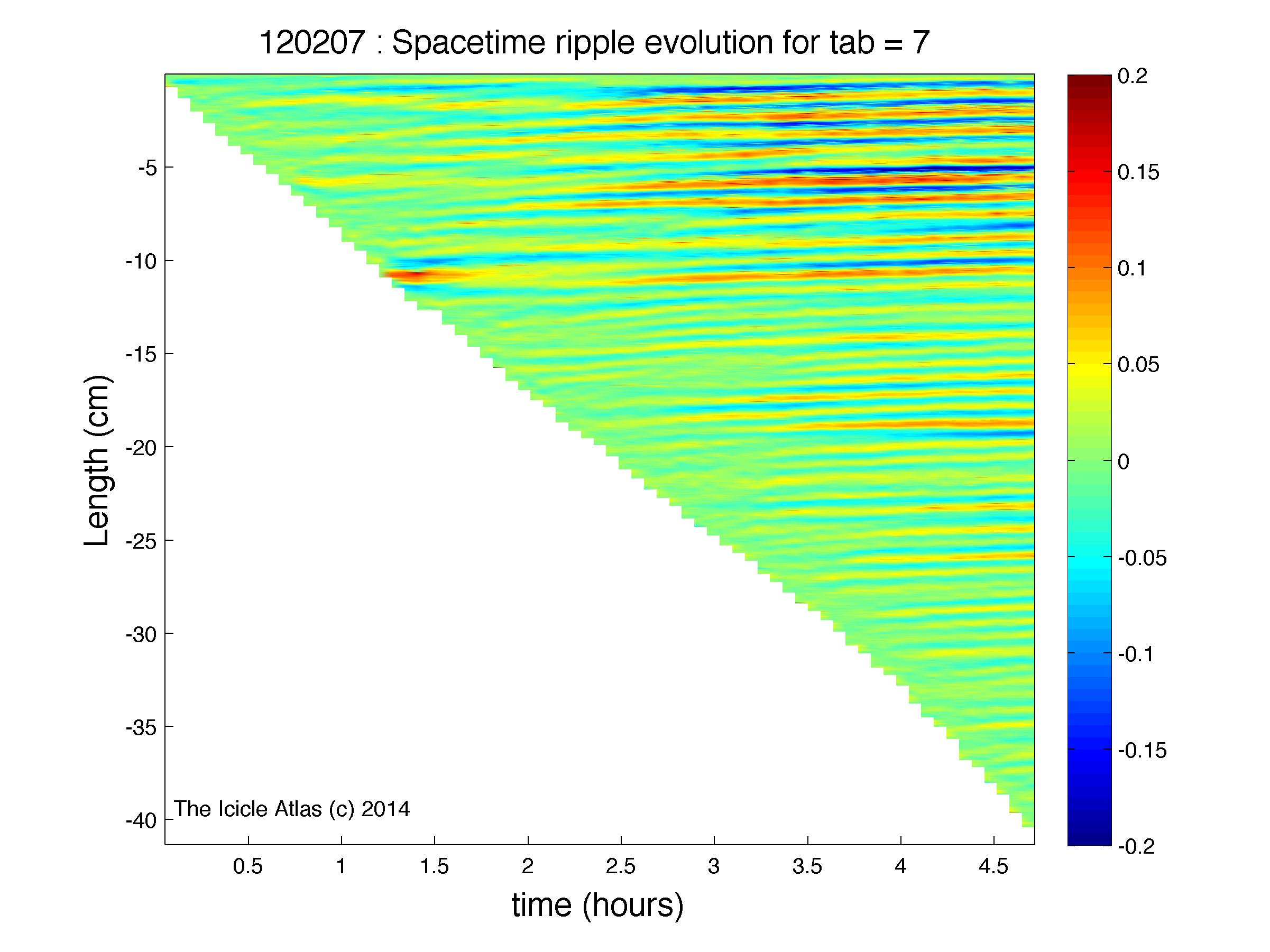

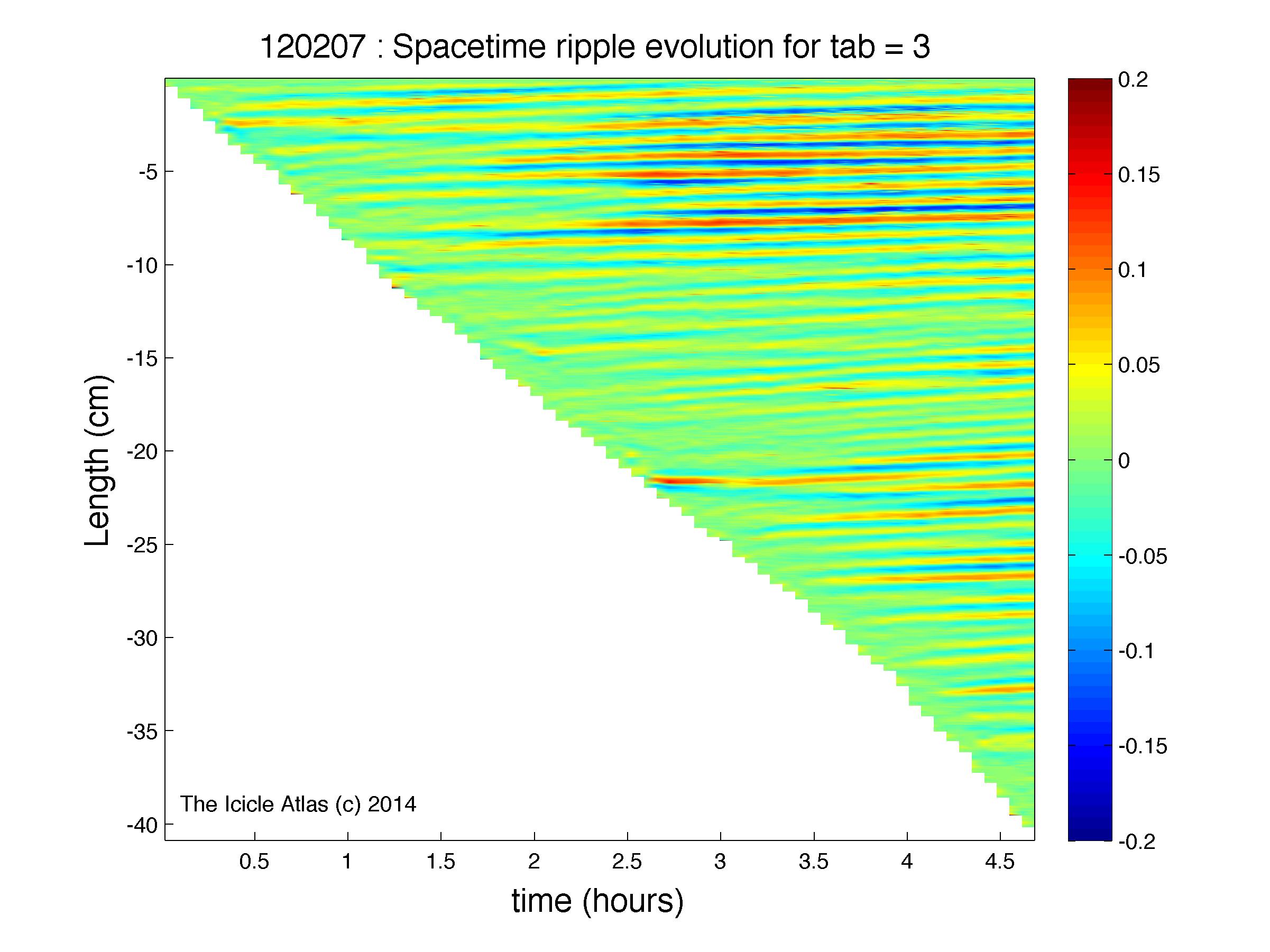

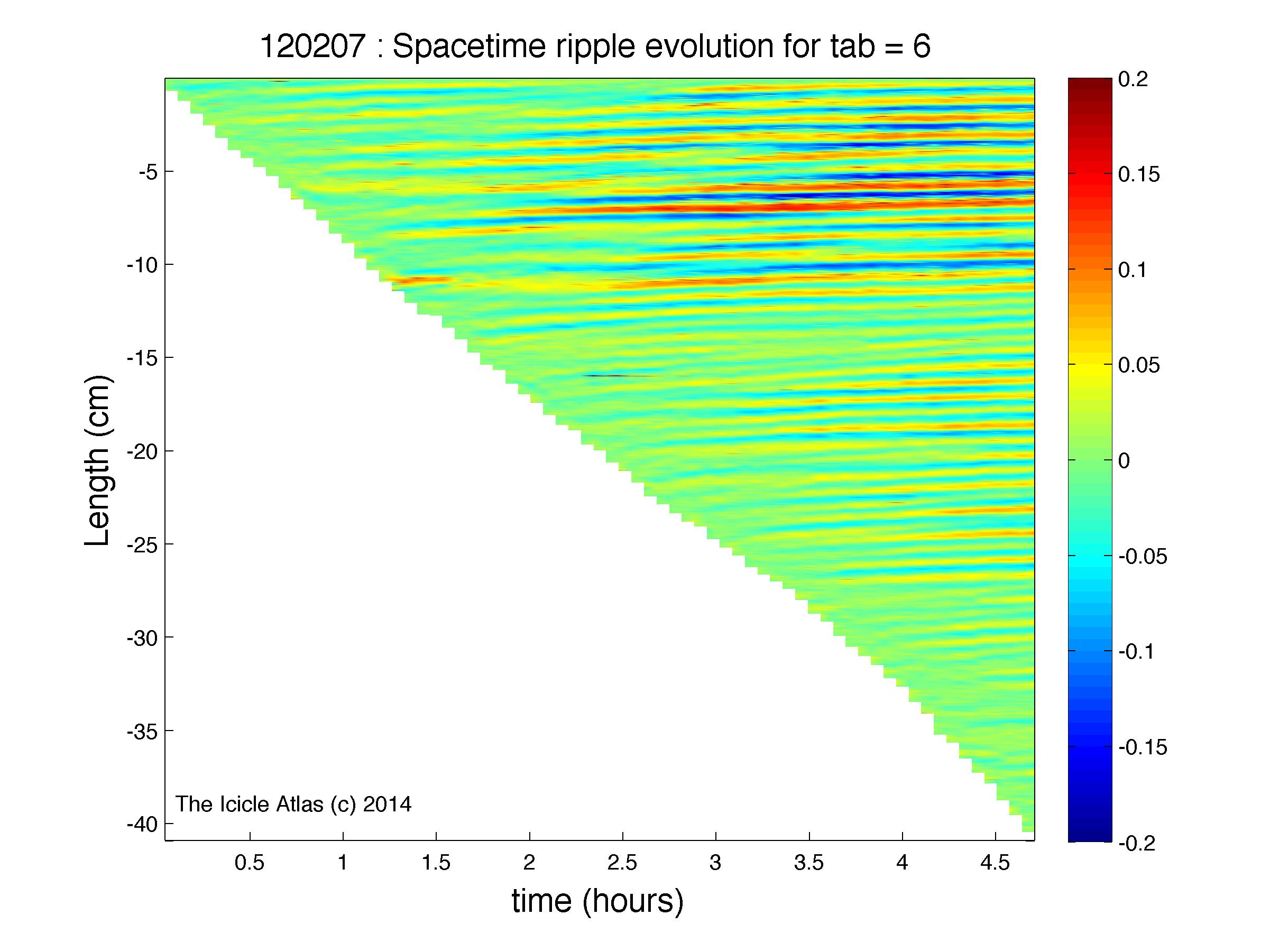

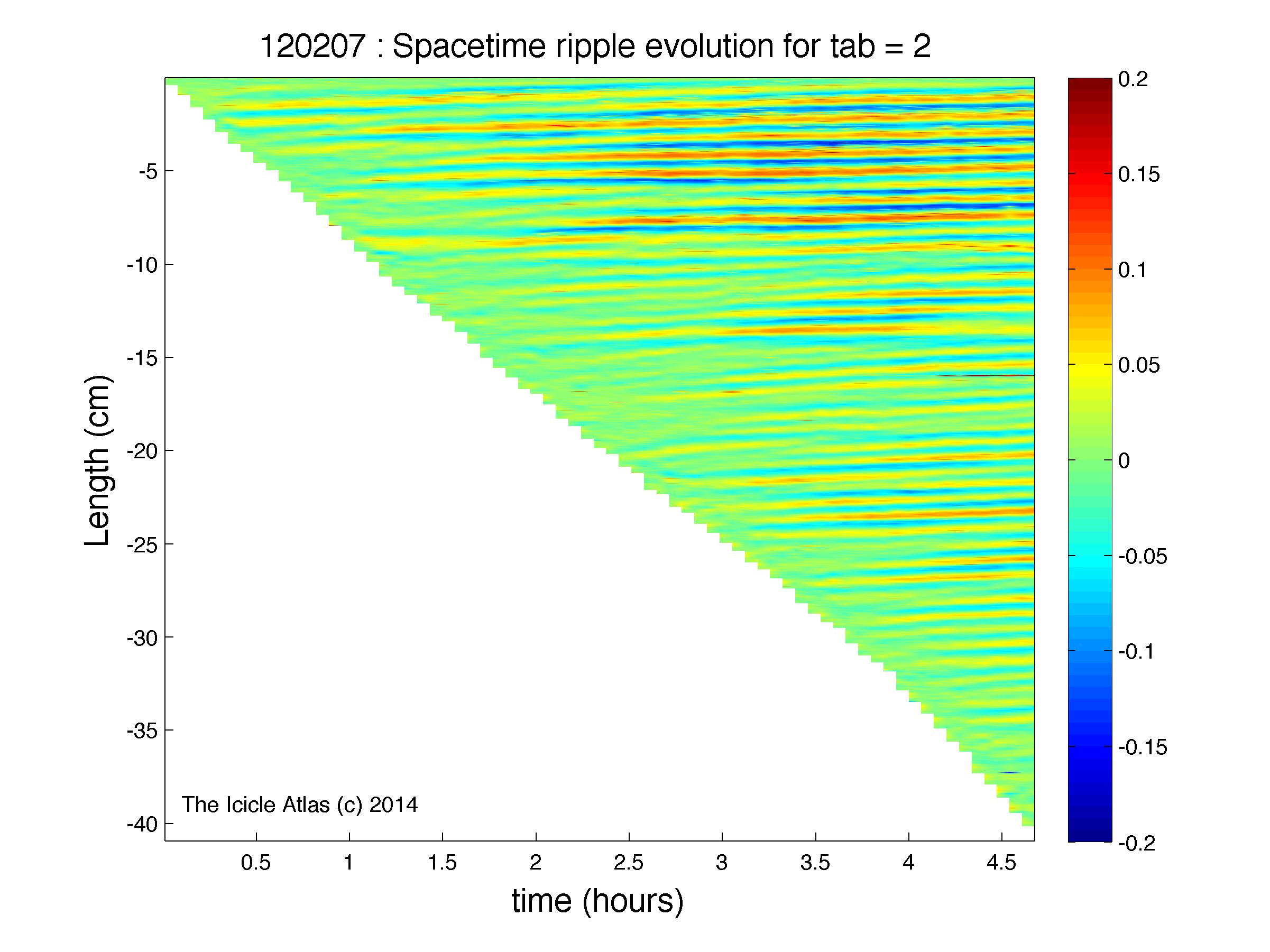

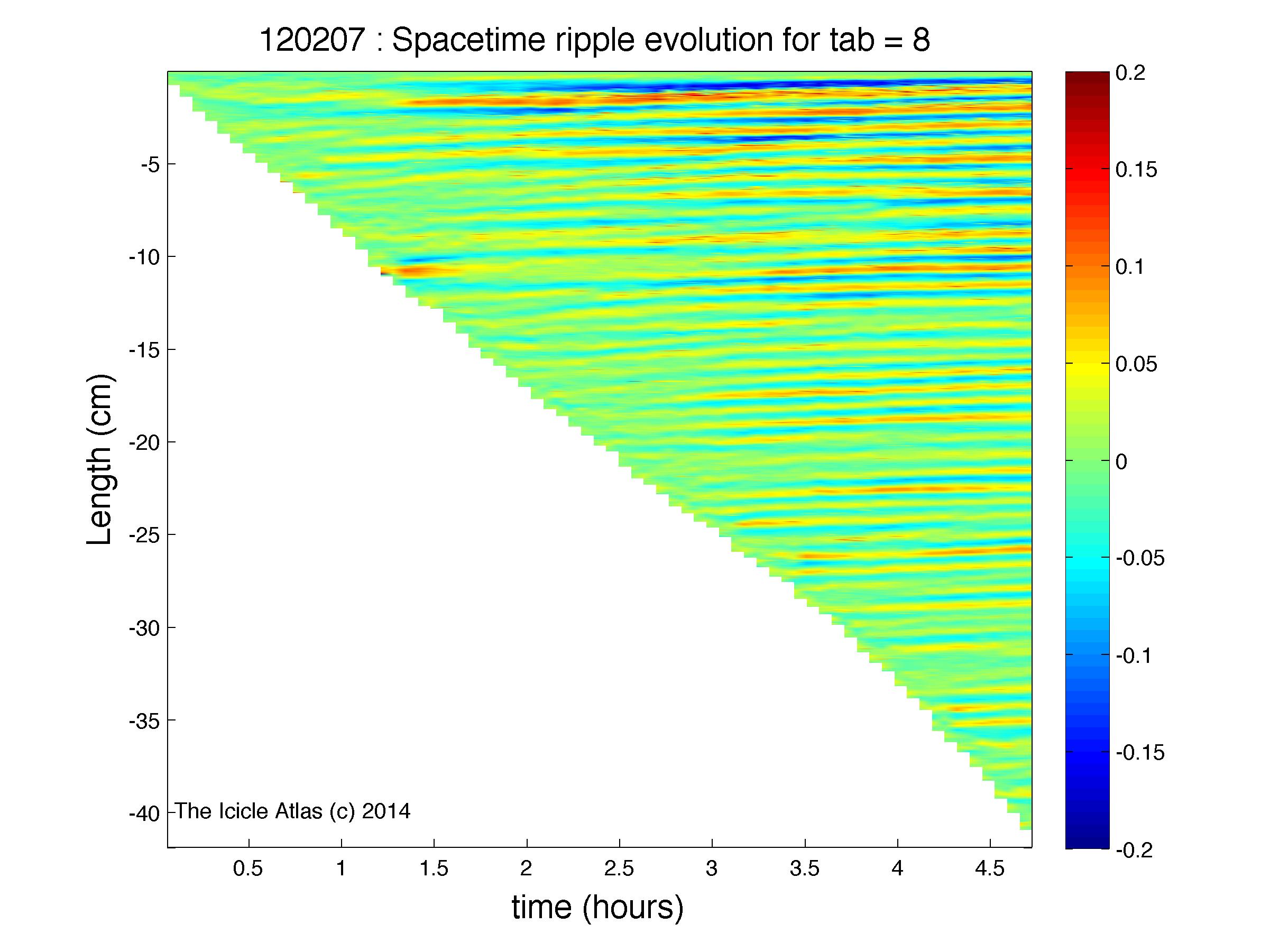

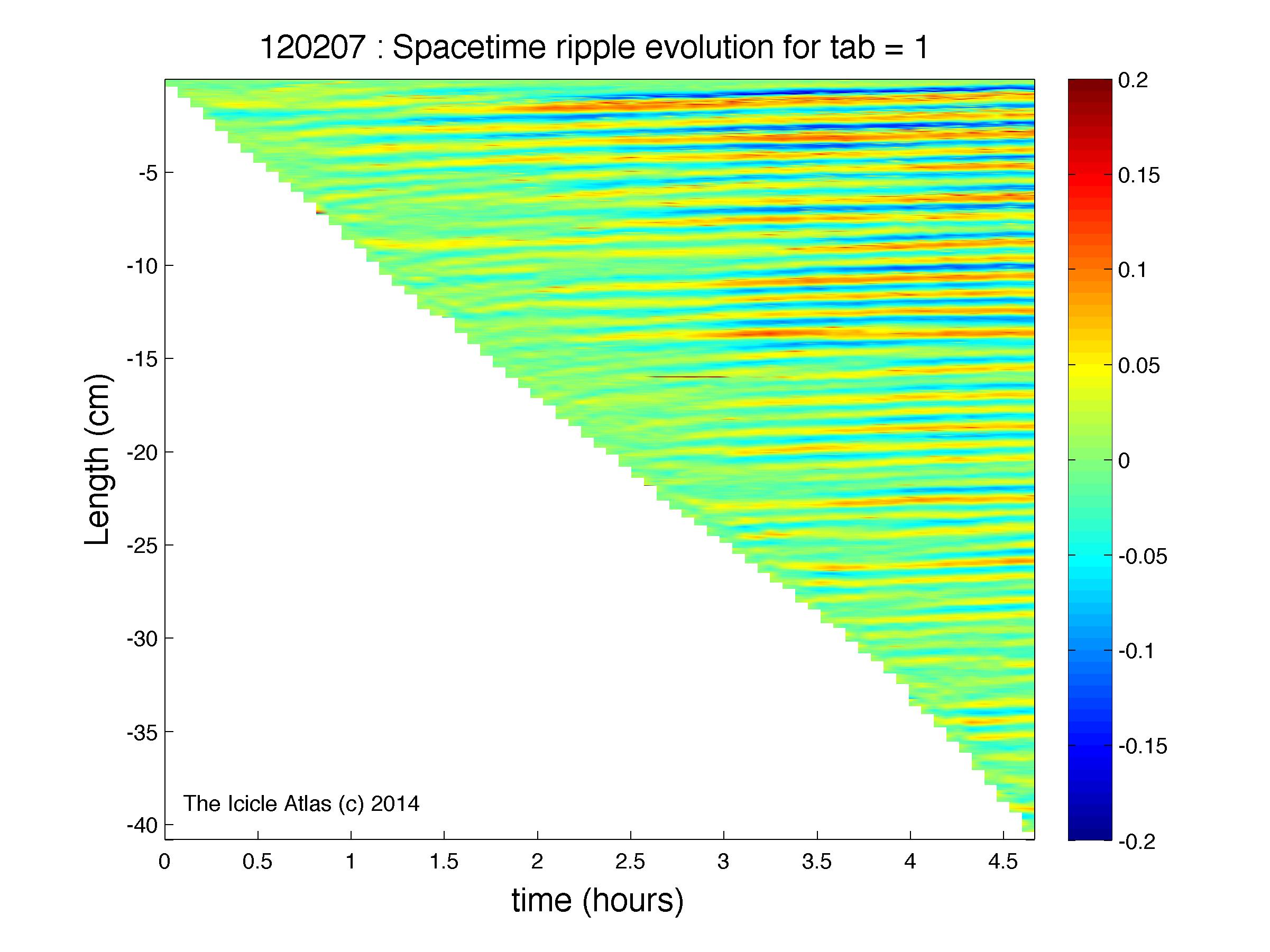

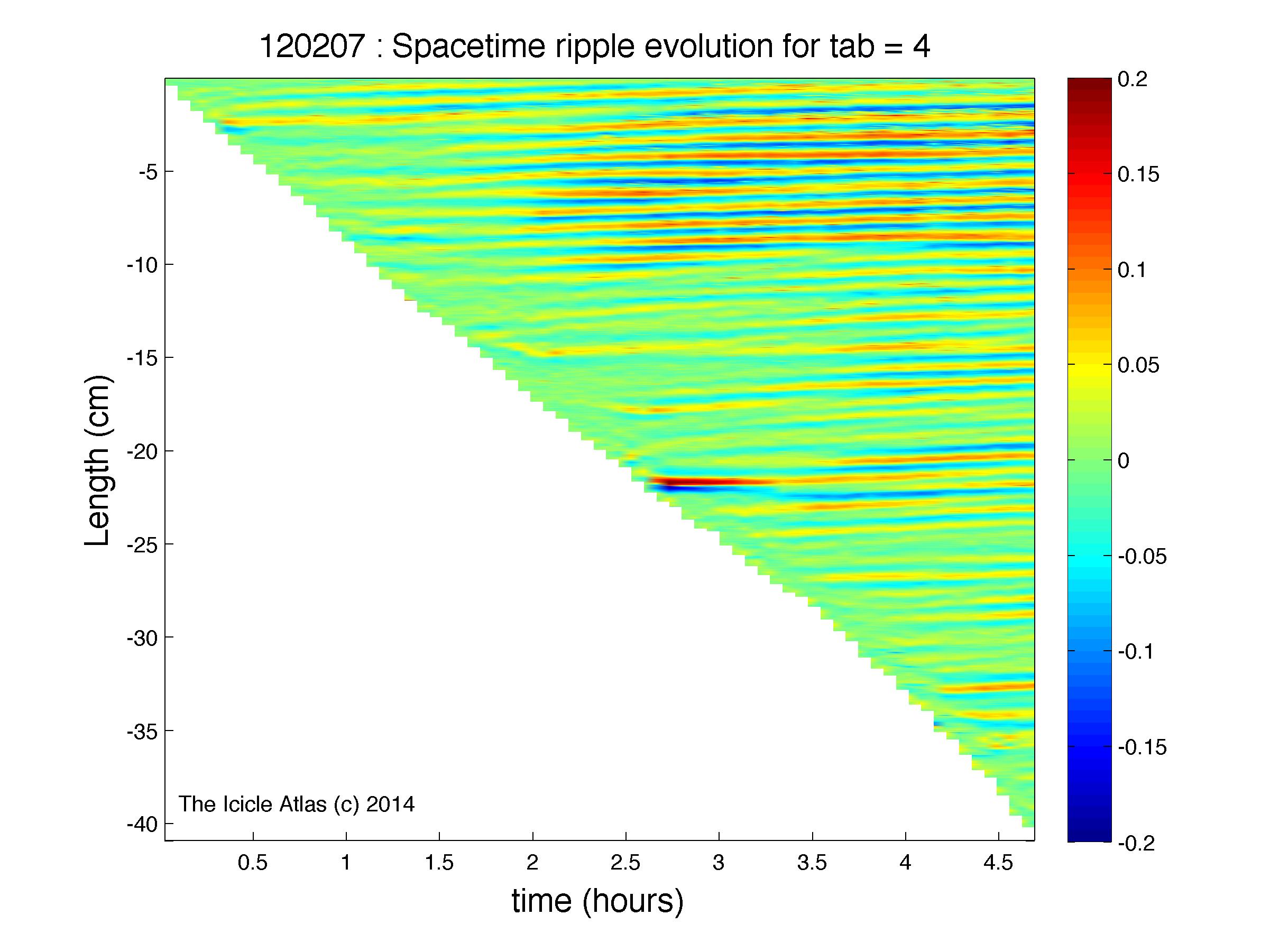

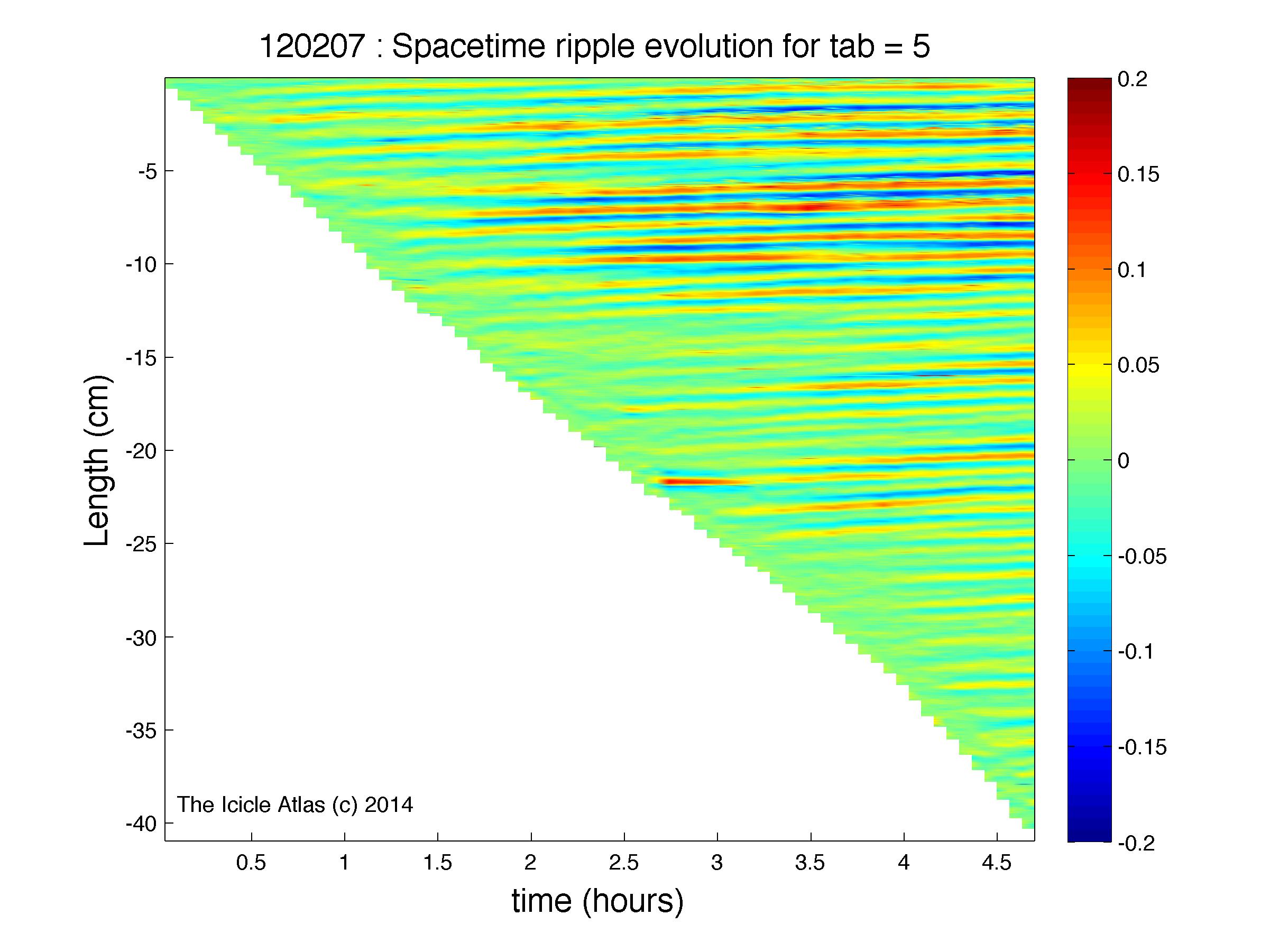

  • Still images

  • Associated files
    • Zip file of various timeseries data files.

  • Link to this run on dataverse
