Cracking the Giant’s Causeway

Solving a 300 year old geology problem

using kitchen materials

Press release background, December 12, 2008.

Feel free to use this material.  Contacts: Lucas Goehring, [ homepage], L. Mahadevan,, [homepage] or Prof. Stephen W. Morris, [homepage].

Direct links to pictures: [ Giant’s Causeway 1] [ Giant’s Causeway 2] [Staffa_wall] [Staffa wall 2] [Fingal_Mehew] [Fingal spelunkers]

[ postpile color ] [ postpile b/w ] [ starch expt b/w ] [starch_splay] [starch top].

Scientific papers:  [ PNAS 2008 ] [ EPL 2005 ] [ PRE 2006 ] [ JGR 2008 ].

Movies:  [ Link ].

Click on any picture to see the full sized version.

Columnar joints are strange, uncanny rock formations in which outcroppings are mysteriously broken into nearly perfect hexagonal pillars, all the same size and packed tightly together.  The most famous examples have accumulated legends since ancient times: The Giant’s Causeway in Northern Ireland [picture] [picture], Fingal’s Cave [picture] [picture] on the island of Staffa in Scotland [picture] [picture], The Devil’s Postpile in California [picture] [picture] and The Devil’s Tower in Wyoming.  The names conjure the apparently supernatural degree of organization of these columns, which appear to be the work of giants or the devil.  What causes these “joints” (to use the geologist’s word for cracks)?

Since they were first discussed in the scientific literature in the 17th century, these formations have attracted the interest of geologists and tourists.  Found all over the world, they are now known to be the result of cooling lava flows, in which shrinkage causes stresses that fracture the rock.  The columns are formed as a sharp front of cooling moves into the lava flow, assisted by the boiling off of groundwater.  As the front advances, it leaves behind a crack network which evolves into an almost hexagonal arrangement.  This network carves out the columns.  There are many mysteries: what causes the ordering of the network into hexagons?  What sets the size of the columns, which varies in different outcrops between a few inches and a few yards?

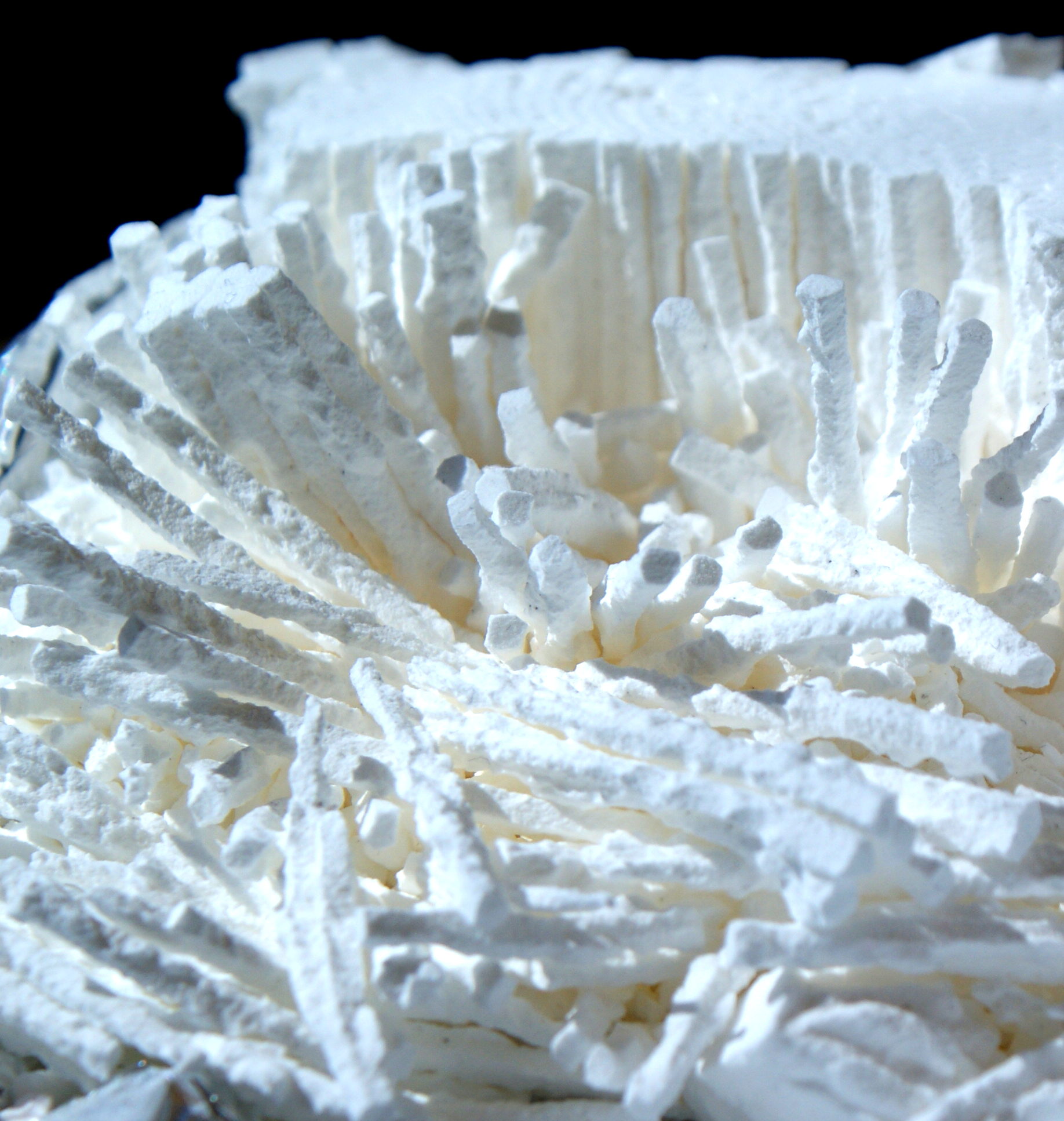

Amazingly, you can make columnar joints in your kitchen!  Just mix 50:50 corn starch and water and put it into a coffee cup.  Dry the mixture with a bright light above it --- this might take up to a week.  When the mixture is dry, carefully break it apart and you will see that the interior is broken up into small “starch columns” a few mm wide [picture] [picture] [picture].  In this experiment, water replaces the heat in the lava, and the columns are 1000X smaller.  Why?

We have learned how to control this “kitchen experiment” very precisely so that we can study the process in detail.  We have also studied real lava columns in Washington state, Scotland and Ireland.  We can measure how the columns evolve by using X rays to see the cracks inside the starch [movie].  We have explained why the size of the columns in lava is 1000X that of starch. The answer lies in a certain ratio of the speed of the cracks, the size of the columns and the diffusion of the water or heat.

Controlled starch experiments make very regular looking columns, just like those found in real lava [picture]. The size of the columns depends on the speed that the cracks advance, and the rate at which the water can move through the starch.  The analogous properties of lava are known from measurements to be much slower.  The ratio of these explains the 1000X magnification of the columns in lava.

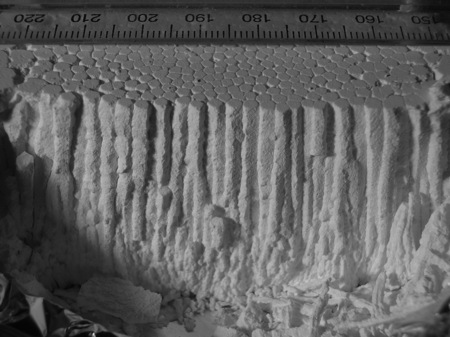

Columns in a controlled starch experiment, scale is mm.

The top surface of the columns in the Giant’s Causeway,

Northern Ireland.
