Overview

Started September 2012 for Dylan Jervis in Joseph's lab.  The amplitude of an RF input signal is linearly adjusted from zero to unity by an amplitude control input signal.  The amplitude control is ±10V, where -10V is 0% output, 0V is gain of 0.5 and +10V is gain of 1.  The heart of the unit is Texas Instruments' VCA822 on an eval board.  TI conveniently provides these blank eval boards for a nominal fee.  The maximum output is at least 1.25Vrms or +15dBm.  Small signal frequency is up to 150MHz (for -3dB), large signal is 120MHz.

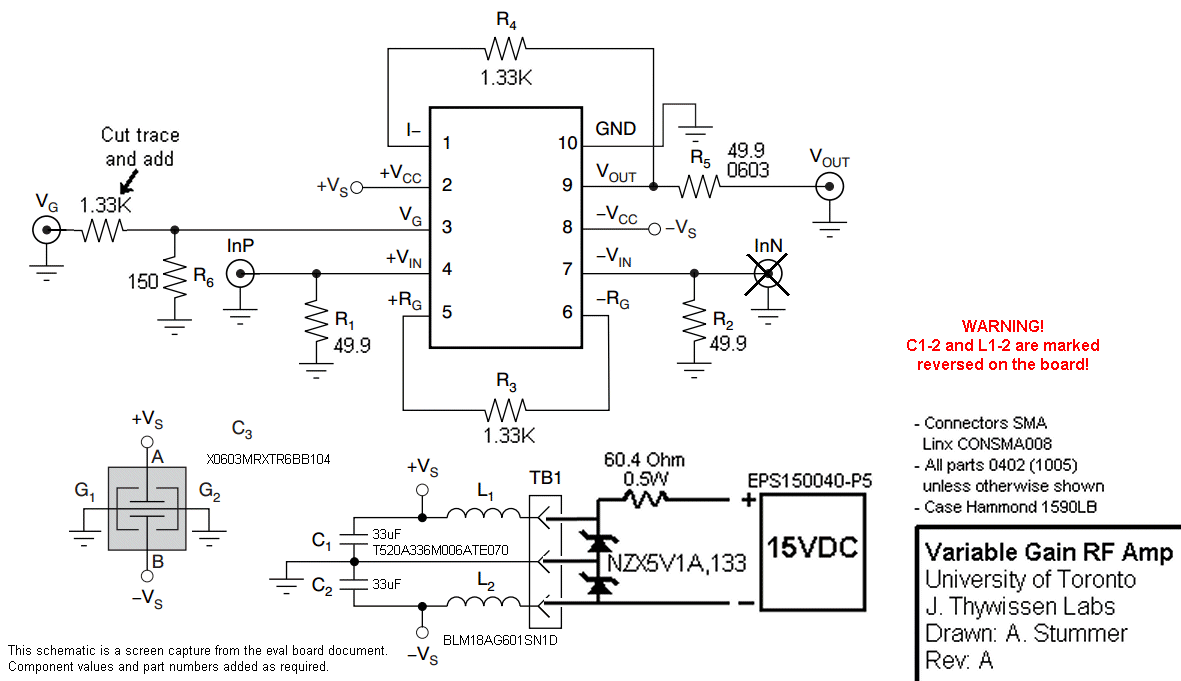

The circuit is quite simple:  RF input goes to the VCA822, as does the gain control voltage, the VCA822 output is the unit's output.  The bipolar ±5V supply is provided by a single DC supply and a pair of zeners.  The whole assembly mounts in a metal box on bulkhead SMA connectors.

WARNING!  L1-2 and C1-2 are marked backwards on the board (you get what you pay for).  The markings "Vs+" and "Vs-" are correct.  Double check tantalum polarities before installing them.
