The Icicle Atlas
Run 110817

• Conditions

  Run date:	2011-08-17
  Wall temperature:	-13.62 C
  Air temperature:	-10.87 C
  Water flow rate:	2.3582 g/min
  Water type:	Canadian Springs (TM) distilled water
  Salt concentration:	no added salt
  Surfactant concentration:	no added surfactant
  Input nozzle temperature:	2.96 C
  Fan flux:	0.95 m^3/min per fan
  Support rotation:	Rotating support
  Support rotation rate:	4.05 min/rot
  Relative humidity:	87.1 %
  Scale of raw images:	54.160 pixel/cm

• Movies
         Playing movies in your browser may require a plugin. Movies can be downloaded.
  • Raw movie with rotation:
  • Quicktime: [ Large ][ Small (including mobile) ]
  • mp4:          [ Large ][ Small ]
  • Raw movie showing each rotational view (tab) separately:
  • Quicktime: [ Large ][ Small (including mobile) ]
  • mp4:          [ Large ][ Small ]

• Still images
  • Browse raw images
  • Zip file of all the raw images for this run (large file)
  • Browse cropped and background subtracted images
  • Zip file of all the cropped and background subtracted images for this run (large file)

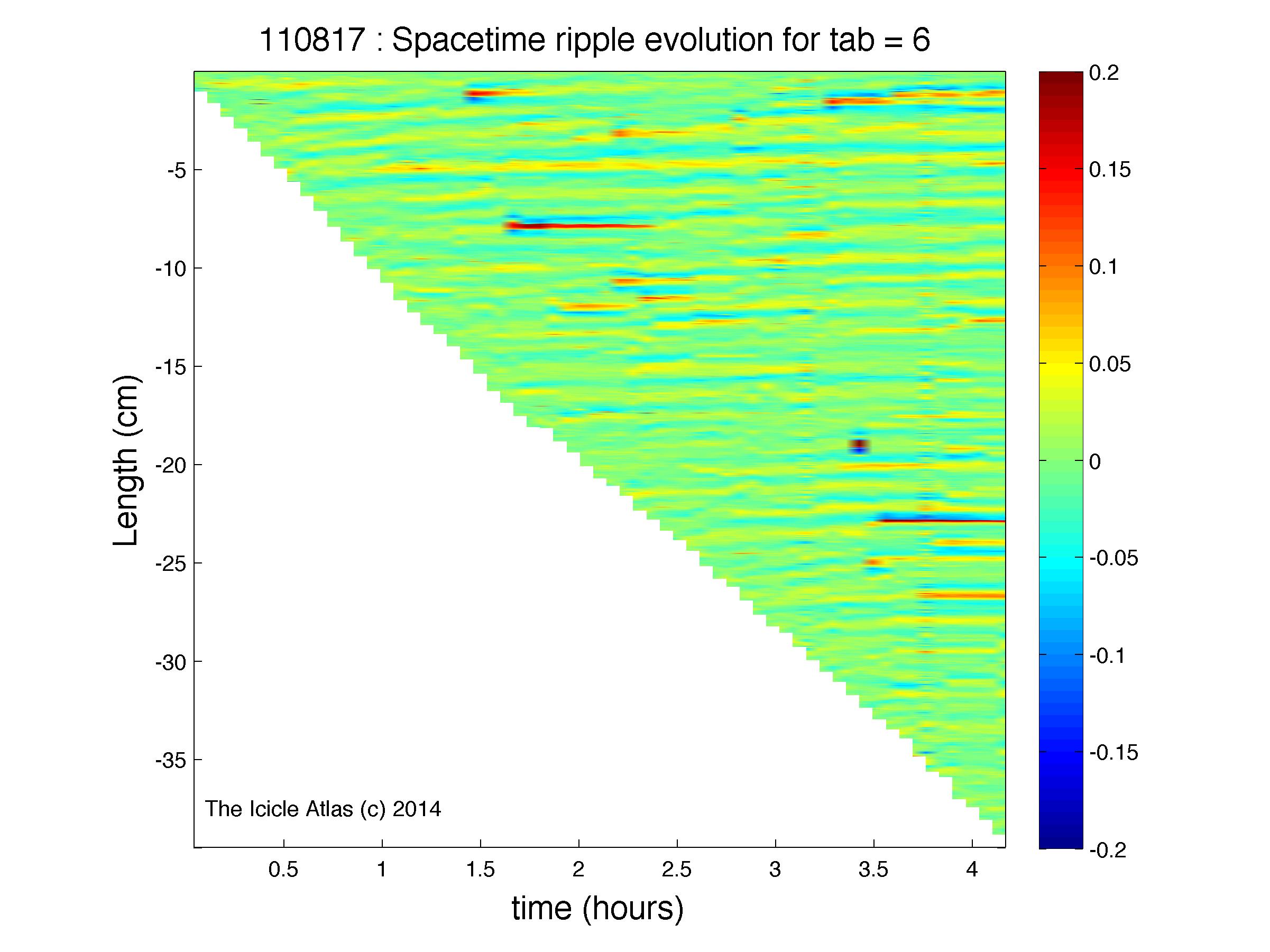

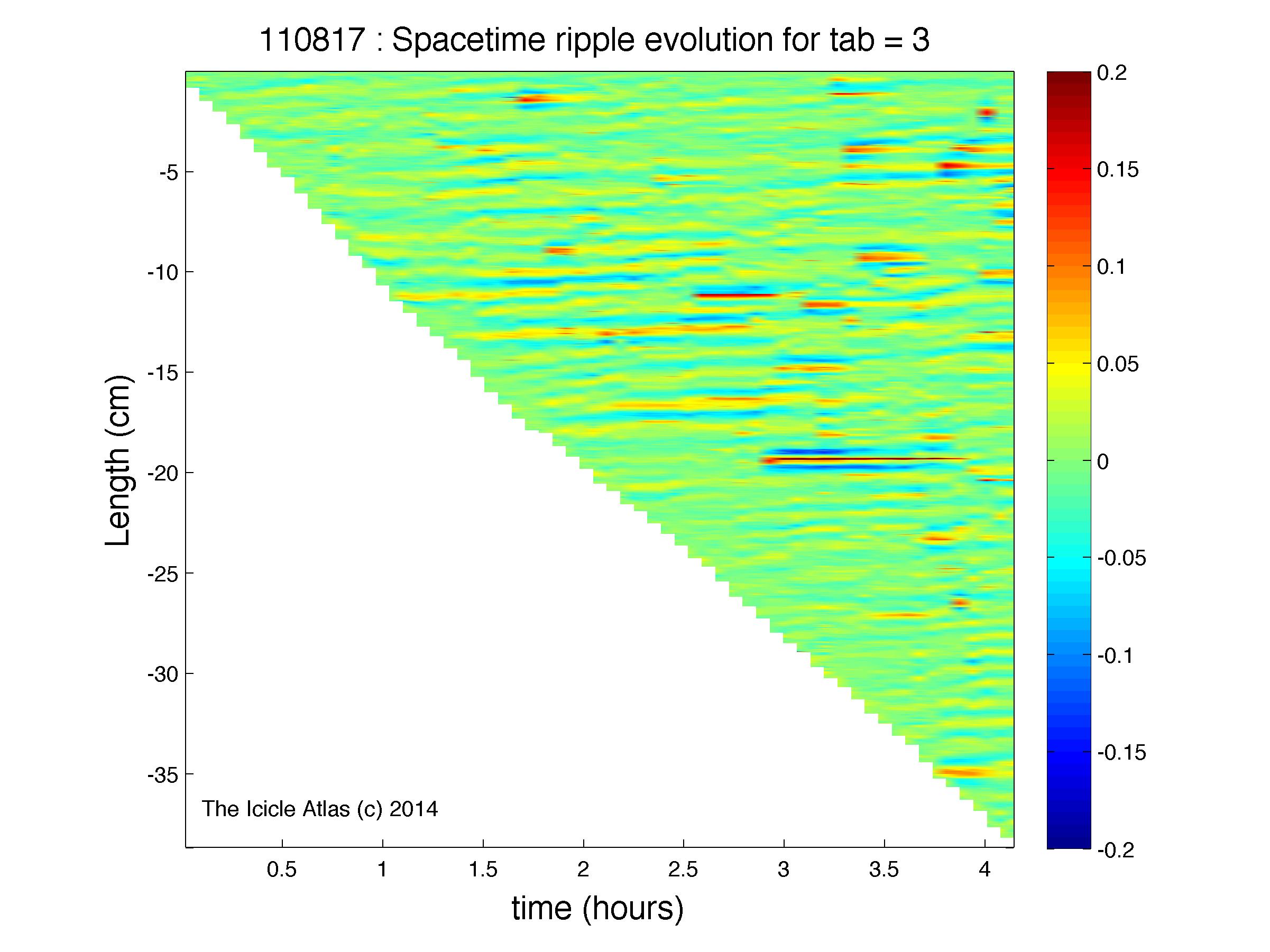

  • Spacetime images of ripples: [tab 1] [tab 2] [tab 3] [tab 4] [tab 5] [tab 6] [tab 7] [tab 8]

• 3D images
  • Browse selected STL files, suitable for 3D printing.

• Associated files
  • Zip file of detected edges, ripples and shape.
  • Zip file of various timeseries data files.

• Link to this run on borealis
  • https://doi.org/doi:10.5683/SP/OABXNR
